BOY – injection moulding machines Germany

BOY Spritzgiessautomaten

Introducing BOY Germany

BOY Product Range

The resource-saving use of plastics has always been a high priority at BOY. Combining the most energy efficient ways of physical engineering, servo electrically and hydraulically, with the finest machine components.

The result makes their machines to the most energy efficient, flexible, little work horses in the range of 100kN to 1.250kN clamping force and 7.3g to 309.2g shot weight (PS).

Their modern Procan ALPHA® control, industry standard 4.0, sends you the machine parameter per App to your smartphone, or tablet. Handling systems can be operated seamlessly via programmable I/Os, or the “integrated handling control” option, eliminating the need for a separate controller.

BOY Horizontal injection moulding machines

BOY in conventional design with maximum flexibility, small footprint and a freely accessible two platen clamping system 100kN to 1.250kN.

EconPlast injection unit with optimized heat transfer from heating element to cylinder through reduction of surface area, advanced insulation and improved temperature control. Servo-hydraulic driven with EconFluid, optimised in viscometry properties, gets this hybrid machine to the lowest possible point of energy consumption.

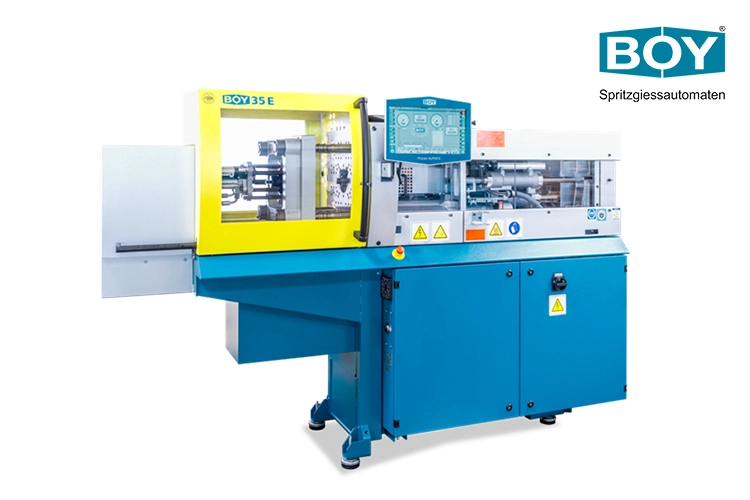

BOY 35 E with 350kN clamping force, 280 x 254 mm clearance between tie bars and a max. shot weight of 69.5g (PS)
BOY 35 E with 350kN clamping force, 280 x 254 mm clearance between tie bars and a max. shot weight of 69.5g (PS)

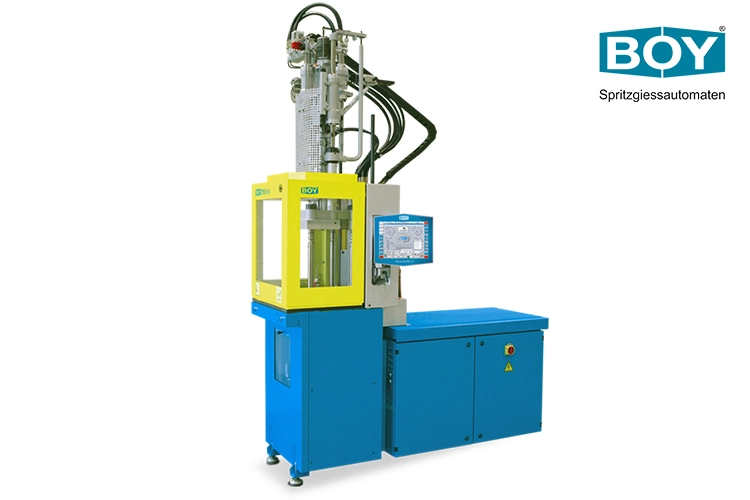

BOY 35 E VV with 350kN clamping force, 280 x 254 mm clearance between tie bars and a max. shot weight of 69.5g (PS)
BOY 35 E VV with 350kN clamping force, 280 x 254 mm clearance between tie bars and a max. shot weight of 69.5g (PS)

BOY Vertical insert moulding machines

BOY in vertical position for injection moulding from 100kN to 600kN clamping force, perfectly designed for applications with insert parts: from micro injection moulding and over-moulding to fully automated production lines.

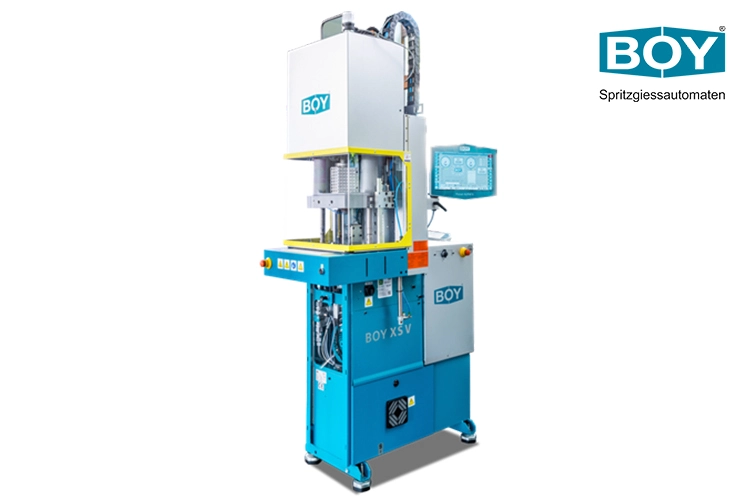

BOY XS V the smallest vertical injection moulding machine with 100kN clamping force, clearance between tie bars 160mm / 205mm diagonal and a max. shot weight of 7.3g (PS)
BOY XS V the smallest vertical injection moulding machine with 100kN clamping force, clearance between tie bars 160mm / 205mm diagonal and a max. shot weight of 7.3g (PS)

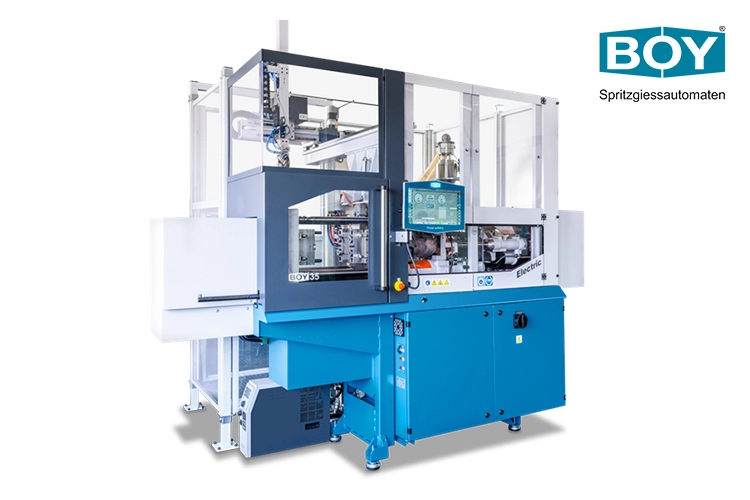

BOY 35 Electric with integrated BOY Handling system; 350kN clamping force, 280 x 254 mm clearance between tie bars and a max. shot weight of 69.5g (PS)
BOY 35 Electric with integrated BOY Handling system; 350kN clamping force, 280 x 254 mm clearance between tie bars and a max. shot weight of 69.5g (PS)

BOY Electromechanical Injection Moulding machines

BOY in full electric injection moulding machine version, as an alternative to the proven energy-saving, servo-hydraulic machines.

Fast and dynamic, with shortest possible cycle times, two platen clamping unit with oil- and lubricant-free mould and tooling area. From 100kN to 800kN clamping force.

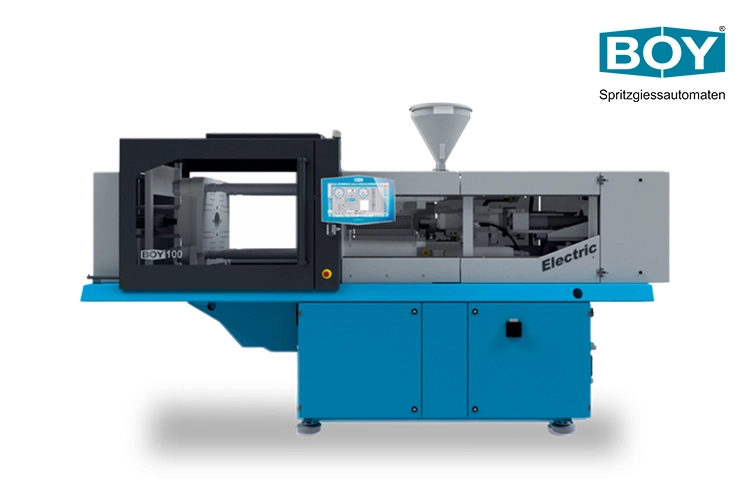

BOY 100 Electric with 1000kN clamping force, 430 x 360 mm clearance between tie bars and a max. shot weight of 157.6g (PS)
BOY 100 Electric with 1000kN clamping force, 430 x 360 mm clearance between tie bars and a max. shot weight of 157.6g (PS)
